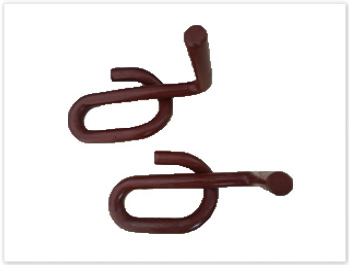

Elastic rail clip

Fatigue test: 5 million cycles without breaking

Material : 60Si2MnA

Diameter 16mm.18mm.20mm.

Surface treatment: Plain oil, black, ZINC, HDG, painted

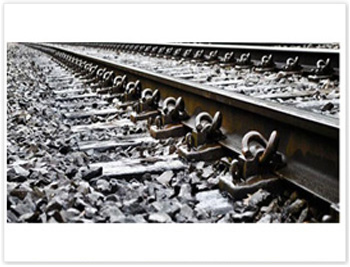

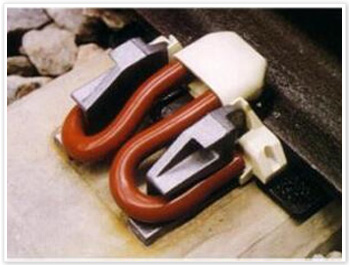

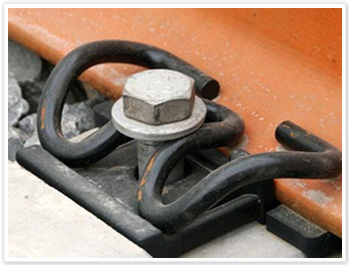

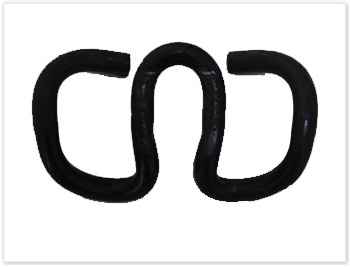

2、SKLTensin clamp

We are the principal manufacturer and exporter of SKL tension clamp, which ensures the electric insulation of the rail on its support. These tension clamps are mainly used to maintain the rail elastically on its support, in both the vertical and transverse directions. We have provided a fixing and supporting device for a rail, comprising a support defining table for the rail and a projecting shoulder on each side of said table, a pad interposed between the rail and the support table, an insulating clip having a body cooperative with the shoulder and a nose portion bearing against the flange of the rail, at least one elastically yieldable strip, and fixing equipment extending through apertures of the body of the elastic rail clip and the strip.

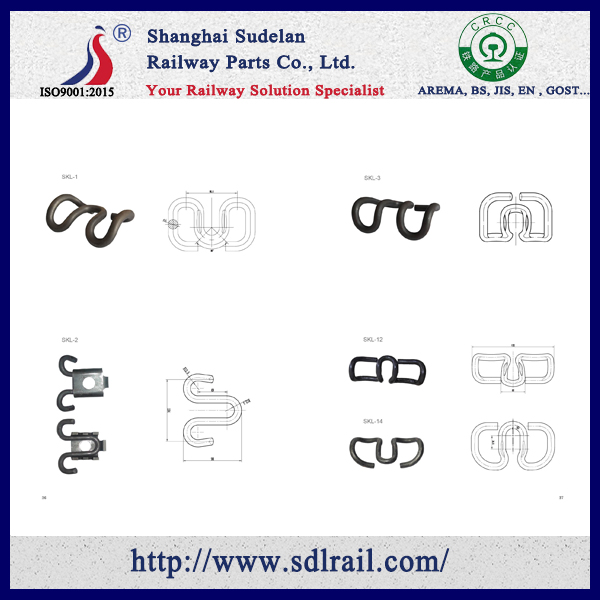

Our elastic rail clip is a boltable clip with high permanent clip strength.This rail clip is especially applied in rail construction with concrete sleepers with the diameter 13mm to 15mm, range from SKL1, SKL2, SKL3, SKL12, SKL14,SKL21, etc.

We can provide many kinds of SKL clips ,, also we can customize according to customer requirement .

Fatigue test: 3million cycles without breaking
Material : 60Si2CrA
Diameter 13mm.
Surface treatment: Plain oil, black, ZINC, HDG, painted

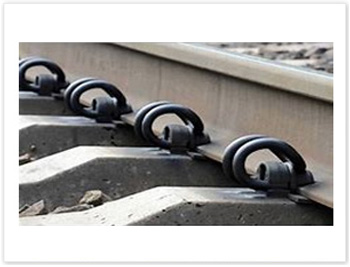

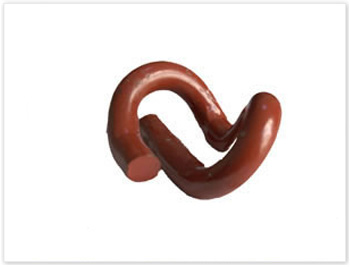

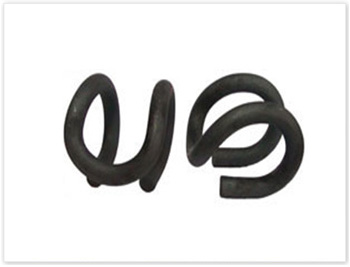

3、PR type rail clip

PR series rail clip is usually used on steel sleeper and wooden sleeper ,It is used with tie plate to fasten the rails.

We can provide many kinds of SKL clips ,, also we can customize according to customer requirement .

Fatigue test: no less than 5 million cycles
Diameter: 20mm 22mm
Material: 60Si2MnA
Surface: Plain oil, black, ZINC, HDG, painted

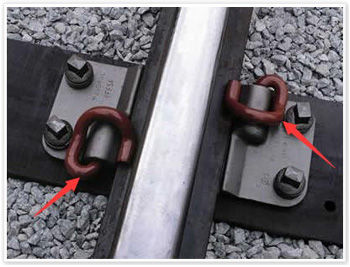

4、Deenik clip

Deenik clips are usually used on steel sleeper and concrete sleeper , it is used in conjunction with other rail accessories to fix rails.

The Deenik clip is widely used in South America.. The invention of rail clips revolutionized the speed of the railway transportation. As the manufacturer of rail clips, we are proud of our high quality products and good after-sale service, which have been appraised by many clients.

Material: 60Si2MnA
Diameter .15mm. 16mm
Surface: Plain oil, black, ZINC, HDG, painted

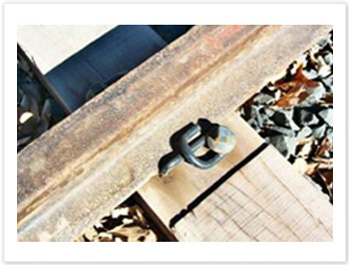

5、Guage lock clip

Guage lock clips are usually used on wooden sleeper and used with screw  spike to secure rails.It is widely used in South American countries

Diameter: 14mm
Material: 60Si2MnA
Surface: Plain oil, black, ZINC, HDG, painted

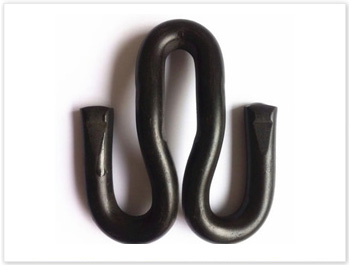

6、Fast  clip

Fast clip is usually used on concrete sleeper and wood sleeper , which is  used with other rail accessories to fix rails. Widely used in South American  countries

The  fast clip is designed with a captive system. Sleeper manufacturers shall  assemble the components on the sleeper before delivery. This product is  specially offered for the mechanized track renewals requiring automated  clipping machines or hand tools. The clip for the system is manufactured in the  shape of M, driven at right angles to the rail. Specially provided for 26tons axle  load, the fast clip can be produced for heavy haul rail with the axle load up  to 40tons .

Diameter: 15mm 16mm
Material: 60Si2MnA
Surface: Plain oil, black, ZINC, HDG, painted

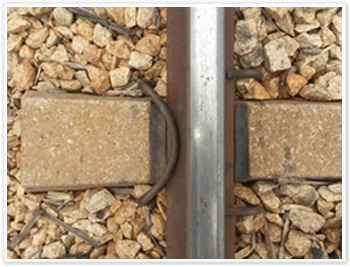

7、Fist clip

Fist clip is a special spring clip ,which is used on concrete sleeper , used  with insulation pin and base plate for fixed rails, widely used in African  countries

Diameter: 16mm
Material: 60Si2MnA
Surface: Plain oil, black, painted

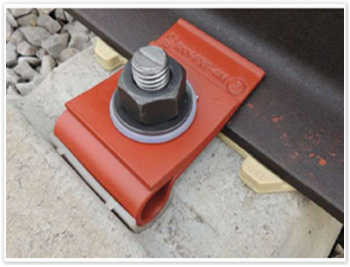

8、Nabla clip

Nabla clip is  widely used in some countries in North Africa. It is also used on concrete  sleepers , and used together with some accessories such as screw spike and  Insulator.

Nabla clip has excellent elastic property, with load 2500DaN.  After the first two tests, variation of the height after releasing is only  0.45mm and after 3rd tests, there is only 0.1mm variation of height.

Thickness: 4.5MM
Material: 60Si2MnA
Hardness:  51-55HR
Surface: Natural oiled, black or red painting .

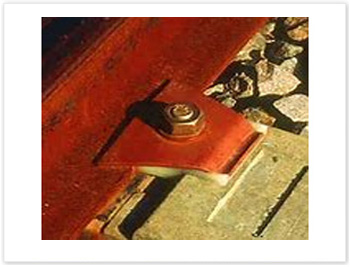

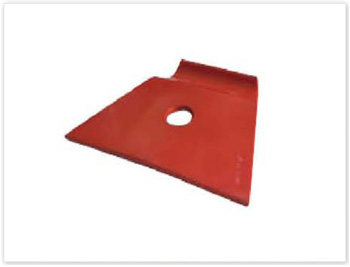

9、Elastic  plate

The Elastic plate is  widely used in Mexico and other European countries ,which is also used on concrete  sleeper ,together with some accessories such as rail screw and Insulator.to fix  the rails .

Thickness: 4.5MM
Material: 60Si2MnA
Hardness: 51-55HRC
Surface: Natural oiled, black or red painting .
